IT - Sandblasting nozzle - 1 piece
The blast media/blast nozzle combination and the optimal blast technology influence the quality and speed of blasting objects.
advantages
- Four times longer service life compared to conventional nozzles because it is made of highly resistant boron carbide.
- Very good guidance and focussing of the blasting medium thanks to the extended nozzle shape.
- The right jet nozzle for every application.
NOTE
Older nozzle has only a color mark and no size grav
Nozzle table
| |
|
Nozzle Ø |
|
Colour |
|
Abrasive |
| Round nozzles |
|
|
|
|
|
|
| |
|

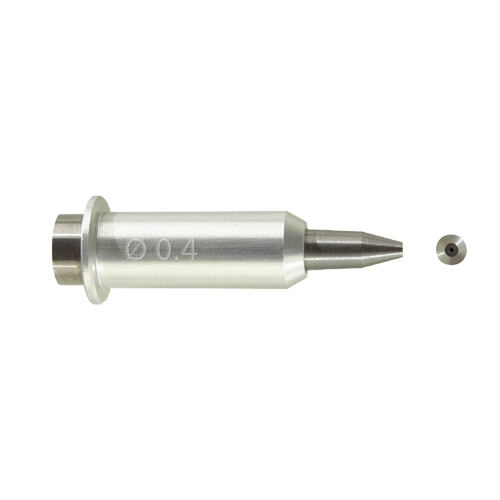

0,40 mm |
|
silver |
|
25 µm |
| |
|
0,60 mm |
|
gold |
|
50 µm |
| Standard 25 - 70 µm |
|
0,80 mm |
|
green |
|
50 - 110 µm |
| |
|
1,00 mm |
|
blue |
|
90 - 125 µm |
| Standard 70 - 250 µm |
|

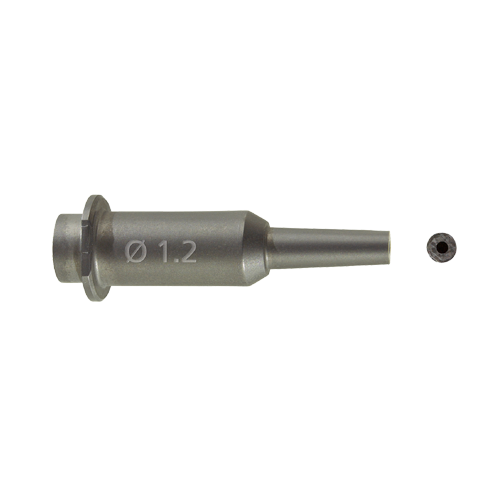

1,20 mm |
|
red |
|
90 - 250 µm |
| |
|
1,40 mm |
|
brown |
|
110 - 250 µm |
| |
|

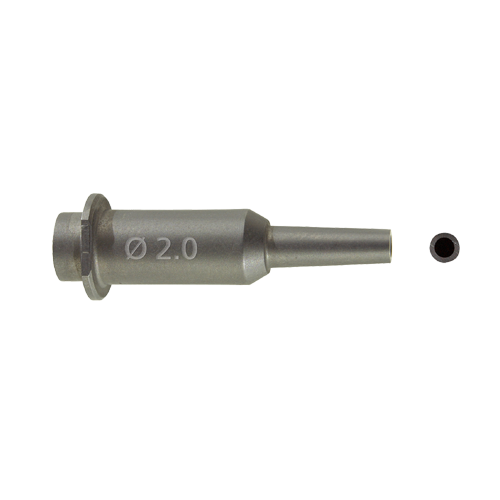

2,00 mm |
|
bronze |
|
250 - 400 µm |
| |
|
|
|
|
|
|

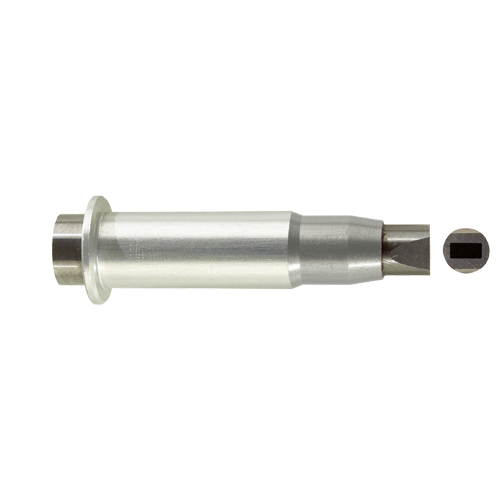

| Slotted nozzles |
|
|
|
|
|
|
| |
|
1,5 x 3,5 mm |
|
violet |
|
250 - 400 µm |
| |
|
|
|
|
|
|
!Danger!
The replacement part may only be installed by persons who have the necessary specialist knowledge and approvals. We assume no liability and guarantee for incorrect and improper installation
