Erkodent Occluform 3

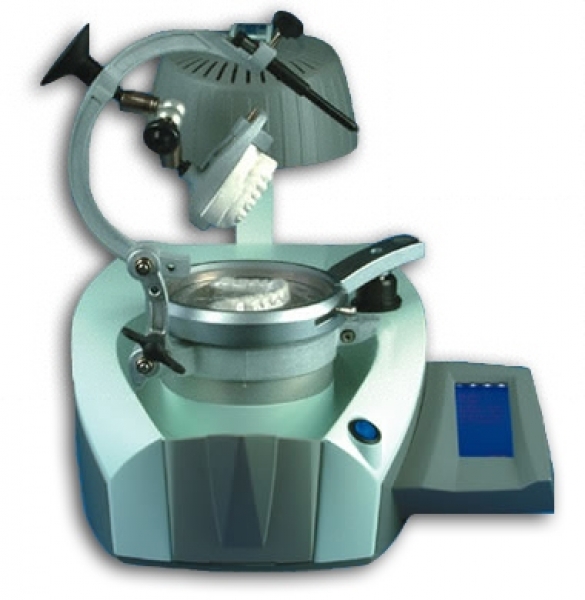

The Occluform-3 is an occludator that can be integrated in a thermoforming unit to imprint the opposing bite (pat. 19915567) and can only be installed at the Erkoform units serie 3.The construction of the Occluform-3 unit is based on a Bonwill triangle with side length of 11.5 cm and a Balkwill angle of 20°.
Usage
The construction dimensions of the Occluform-3 allow a bite elevation at average values. The elevation of 1 line at the supporting pin corresponds to approx. 1 mm bite elevation at the incisal point.
If a construction bite is at disposal the models are articulated in the Occluform-3 using this construction bite
Notice
The Occluform 3 can only be use in the erkodent units series 3 ( Erkoform 3 / 3d / 3d+ / 3d motion )

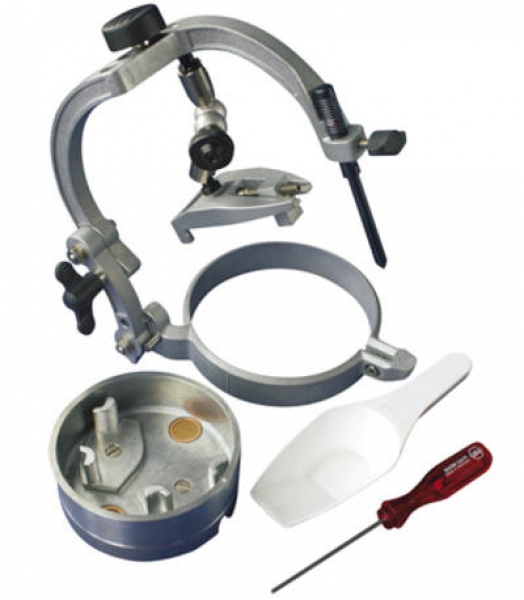

Occluform-3,
occludating bow with fixation ring for Erkoform units serie 3,
model pot for fixation of the model in the unit form pot,
Occ3-aM with model pot support,
granules shovel, hexagonal socket wrench size 3
