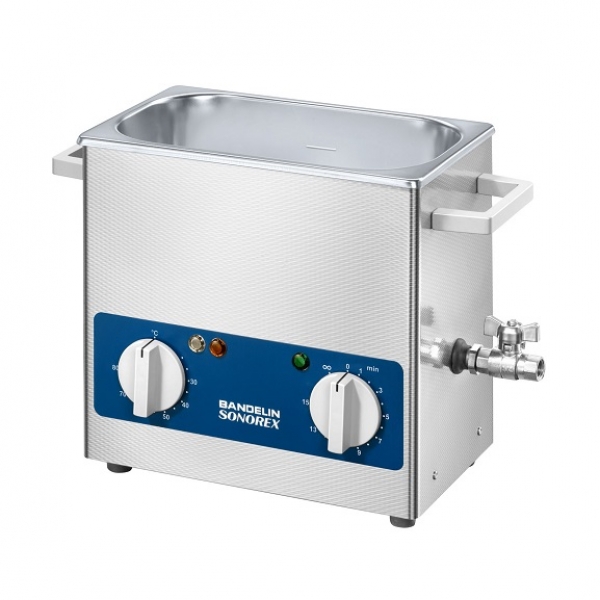

Bandelin Sonorex Super RK 102 H
High-performance ultrasonic cleaner with heating for use in the practice, laboratory and workshop.
The proven and particularly robust SONOREX ultrasonic baths clean thoroughly and gently by means of intensive cavitation bubbles, even in the hard-to-reach places of the cleaning objects.
A user-friendly rotary handle control is used for easy setting of the cleaning time and bath temperature.
The fully automatic SweepTec function prevents standing waves in the ultrasonic field and achieves particularly even cleaning.
| Inner dimension L [mm] |
240
|
| Inner dimension B [mm] |
140
|
| Inner dimension T [mm] |
100
|
| Capacity [l] |
3
|
| Work content [l] |
2
|
| Level marking |
yes
|
| Tub material |
1 4301
|
| Ultrasound frequency [Hz] |
35
|
| Tub thickness [mm] |
0,8
|
| Hard chrome plating |
Yes
|
| Procedure |
Ball valve G ΒΌ, side right
|
| Ultrasonic peak power [W] |
480
|
| Nominal ultrasonic power [W] |
120
|
| Ultrasound frequency [kHz] |
35
|
| Sweeptec |
yes
|
| Vibrating systems |
Yes
|
| Operation |
Rotary handle
|
| Time setting [min] |
1-15, infinite
|
| Temp. set. (C) |
30-80
|
| Heat output [W] |
140
|
| Operating voltage [V] |
230 V EU plug
|
| Mains cable |
Fixed to the unit, 2 m long
|
| Outer dimension length [mm] |
260
|
| Outer dimension width [mm] |
160
|
| Outer dimension height [mm] |
250
|
| Degree of protection housing |
IP 32
|
| Handles |
Yes
|
| CE marking |
Medical Devices Class I 2017 / 745 / EU, Low Voltage Directive 2014 / 35 / EU, EMC Directive 2014 / 30 / EU, RoHS Directive 2011 / 65 / EU
|
| Packing Length [mm] |
0,66
|
| Packing Width [mm] |
0,455
|
| Packing depth [mm] |
0,46
|
| Net weight [kg] |
16,3
|
| Gross weight [kg] |
18,8
|
